Mycobot Robotic Arm 6-Axis Robot Ros Visual Recognition Children'S Programming Stem Education for Legos

Introduction:

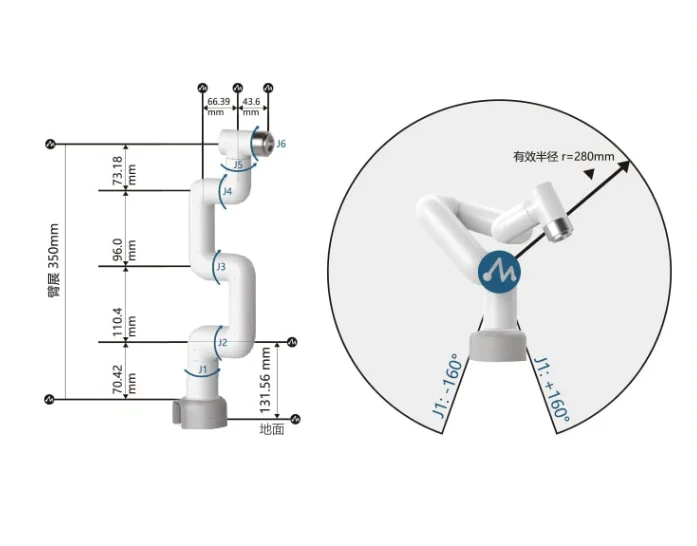

• The robotic arm has a dead weight of 850g, a payload of 250g, an arm length of 350mm, and an effective reach of 280mm; it is compact but powerful, and can be used with a variety of end effectors to adapt to a variety of application scenarios. It can also support the secondary development of multi-platform software to meet the needs of various scenarios such as commercial applications, scientific research and education, and smart home.

Parameters:

• Degrees of freedom: 6

• Effective load: 250g

• Wingspan: 350mm

• Working radius: 280mm

• Repeat positioning accuracy: ±0.2mm

• Weight: 850g

• Power input: 8V, 5A

• Working temperature: -5~45°

• Communication: USB/Type-c

Vice control board parameters:

• Model: M5 Atom

• Chip: ESP32, 240MHz Dual-core 520KB SRAM

• Flash: 4MB

• Installation position: behind the sixth joint

• LED display: WS2812C 2020*25

• Software: non-open source, burnable software

Main control board parameters:

• Model: M5 Basic

• Chip: ESP32, 240MHz Dual-core 520KB SRAM

• Flash: 16MB

• Wireless: support 2.g 3D antenna and Bluetooth

• Installation position: Center of base

• Screen: 320*240 full color TFT LCD, brightness: 853nit

• Speaker: 1W-0928

• IO port: PIN (G1, G2, G3, G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)

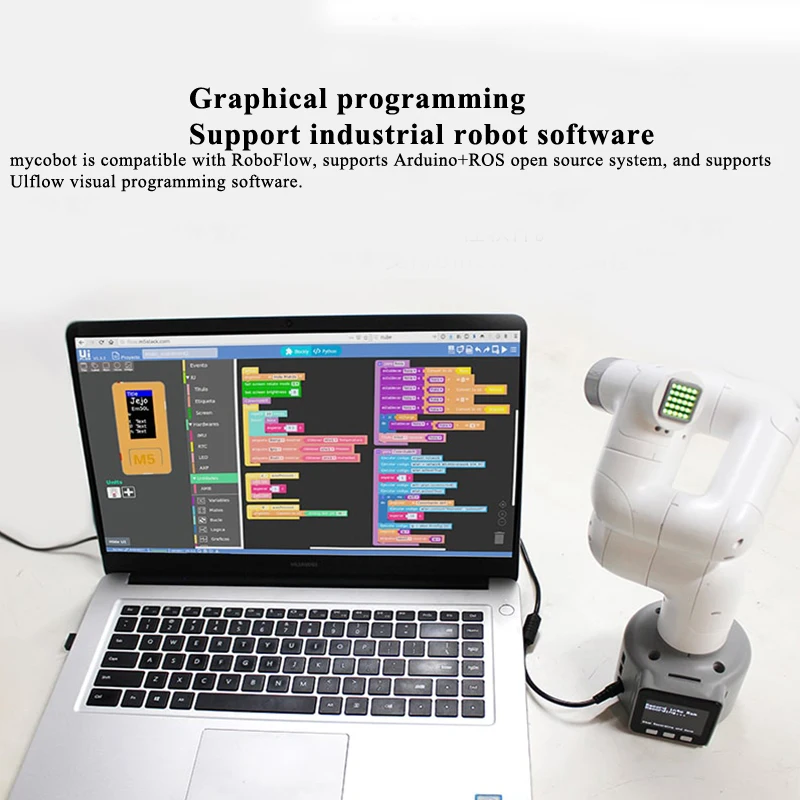

• Software: built-in trajectory input program, built-in correction program, Arduino, Ulflow, RoboFlow
